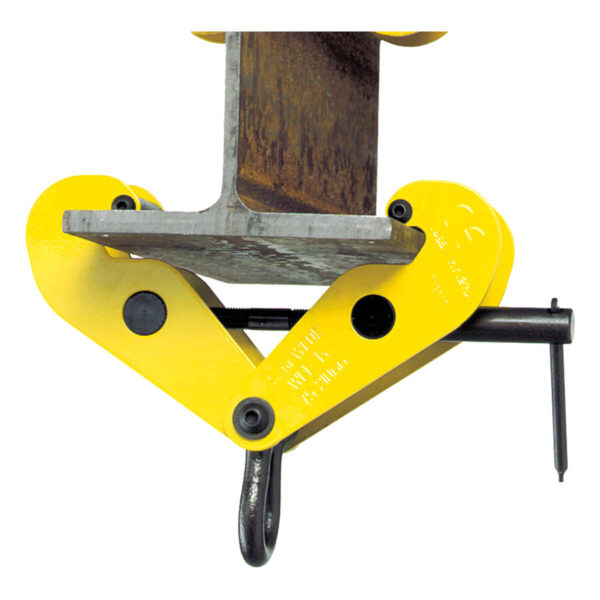

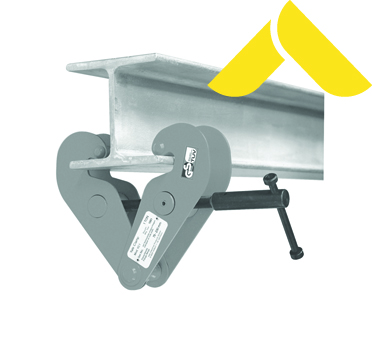

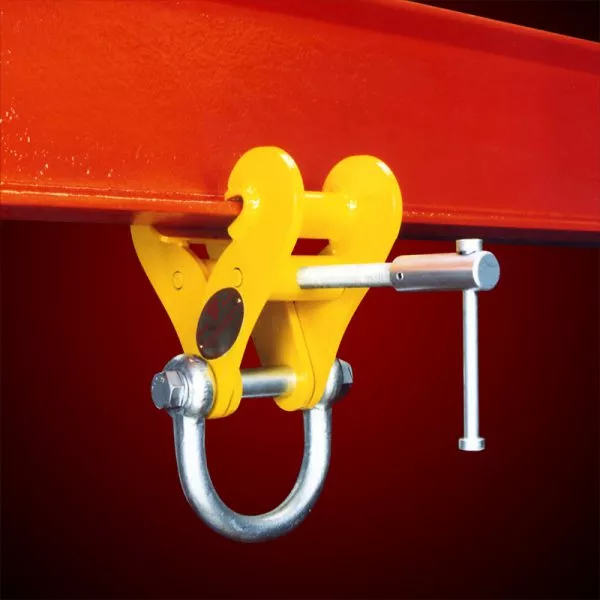

Beam clamps

A temporary lifting point can be made with a beam clamp. These clamps can be used in different situations and are easy to fit.

The beam clamps are available in workloads of 1 to 25 tons.

Please contact us for more information.

Contact us

Description

wdt_ID Art. WLL (tons) Flange range (mm) Weight (kg)
1 20401 1 75 - 230 3,8
2 20402 2 75 - 230 4,6
3 20403 3 80 - 320 9,2
4 20404 5 90 - 320 11,0
5 20405 10 90 - 320 17,2
6 20406 10 203 - 457 27,3
7 20407 15 203 - 457 53,8
8 20408 20 203 - 457 63,2
9 20409 20 406 - 610 79,6
10 20410 25 203 - 457 71,2
